Pressure-Free Solder Ring Heat Shrinkable Tube Quick Connection Terminal Shielded Wire Lamp Middle Connection Protection Butt Connection Waterproof

$11.99 $16.29

Our Waterproof Solder Cable Connector Kit provides you with high quality solder and seal terminals that can be applied in numerous wiring projects.

Whether you are on a boat, in a car, at home or on a science project, our kit can ensure solid soldering is achieved with strong holding every time. With dual-walled and tube shrinking design, your wire will NEVER SLIP OUT of any connector!


FEATURES:

One-step connection of wires, soldered, insulated and sealed
Easy to Use : No need to crimp. Transparent sleeve provides precise inspection when inserting wires inside. Specific colors for specific sizes are easy to pick up for use
Can be ideal use in marine and automobile applications
Dual-walled design tubing: Polyolefin tubing outside and hot melt adhesive inside
Sealed with advanced waterproof function to ensure safety
Polyolefin heat shrink butt connectors improve strength

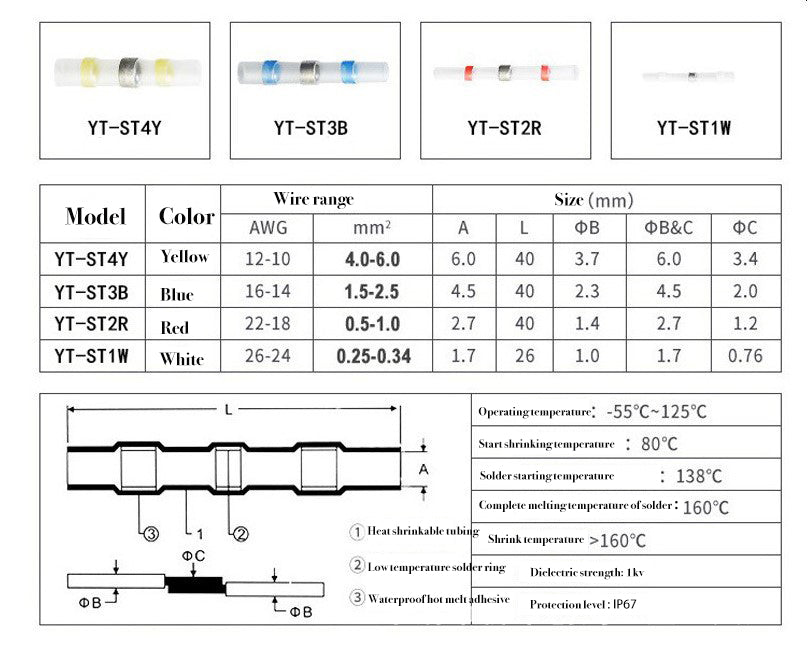

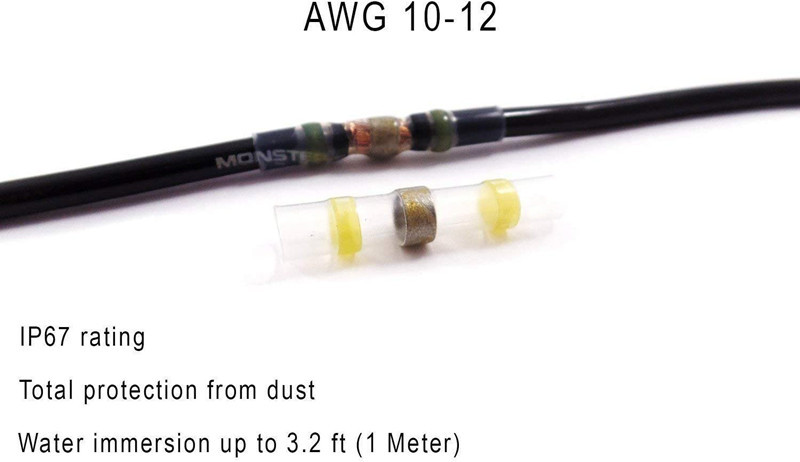

AWG 10-12: Yellow
IP67 rating
Total protection from dust
Water immersion up to 3.2ft(1 Meter).
Diameter 6.0mm, Cable cross-section 4.0-6.0 mm²; 12- 10 AWG.

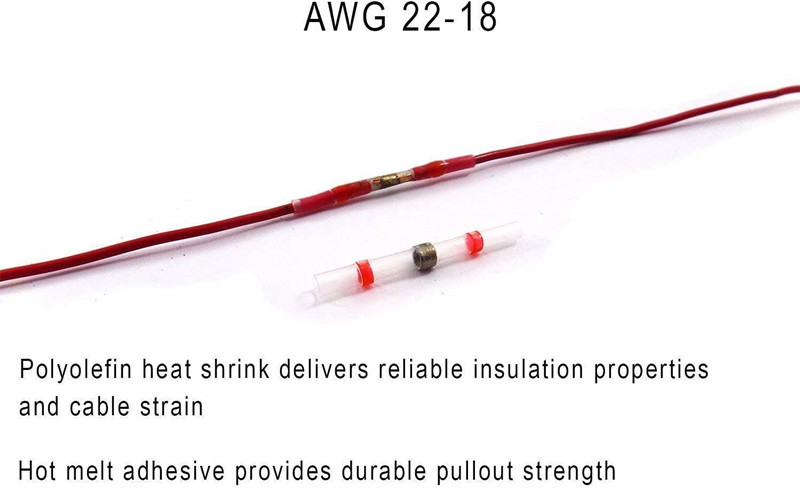

AWG 22-18: Red
Polyolefin heat shrink delivers reliable insulation properties and cable stain
Hot melt adhesive provides durable pullout strength.Diameter 3.0mm, Cable cross-section 0.5-1.0 mm²; 22-18 AWG.

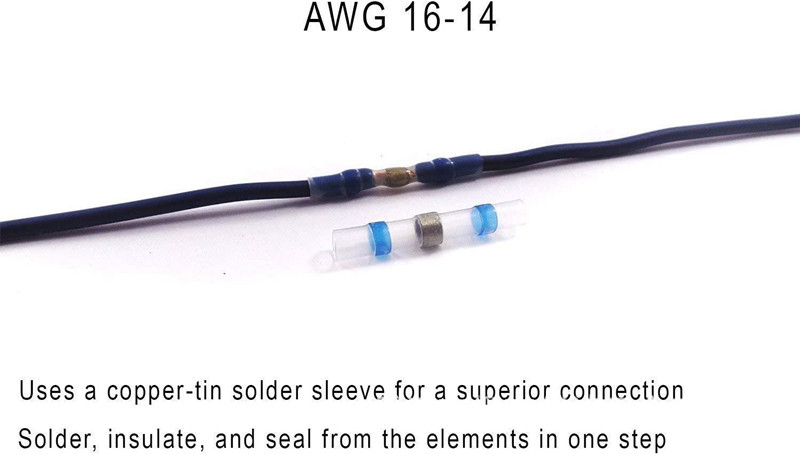

AWG 16-14: Blue
Uses a copper-tin solder sleeve for a superior connection
Solder, insulate, and seal from the elements in one step.Diameter 5.0mm, Cable cross-section 1.5-2.5 mm²; 16-14 AWG.

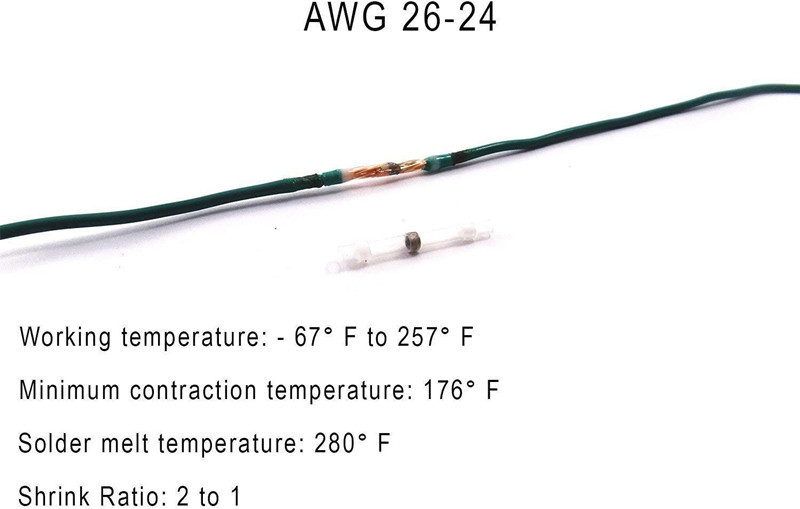

AWG 26-24: White
Working temperature:-67°F to 257°F.
Minimum contraction temperature: 176°F.
Solder melt temperature:280°F.
Shrink Ratio: 2 to 1.
Diameter 1.5mm, Cable cross-section 0.25-0.34 mm²; 26- 24 AWG

Package:
Style1: 30PCs As you choose

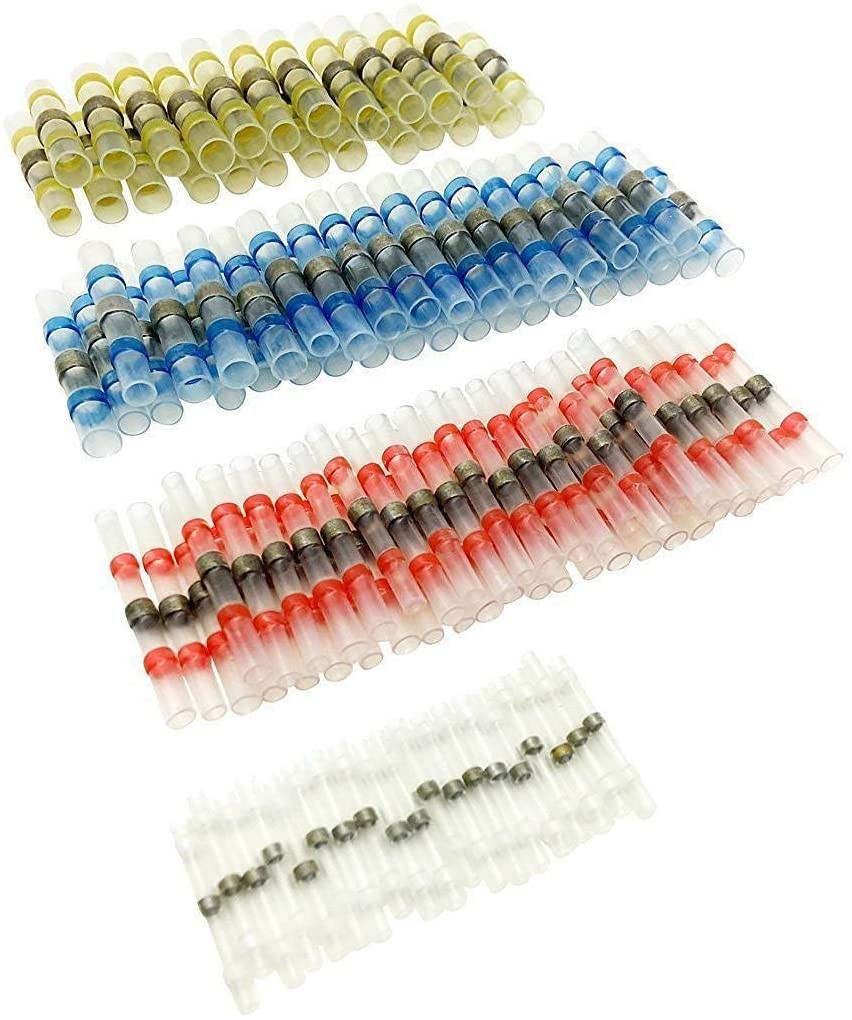

Steyle2: 120PCs (30 Red+30Blue+30Yellow+30White)

Waterproof Solder Cable Connector Kit
