Avoid repeating the HDMI plug-in and un-plug process with our HDMI Bi-Direction Switch.
HDMI Bi-Directional Switch helps you to connect two HDMI inputs to one HDMI display.
Easily switch between two devices with only one single press with the button on the switcher.

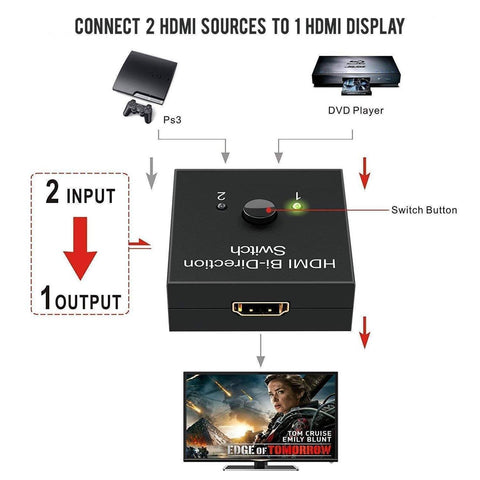

Our HDMI switch support bi-directional work, help you to connect two HDMI sources to one HDMI display or one HDMI source to toggle between two HDMI display.
Plug & Play
Our plug and play HDMI switch is easy to operate. It is powered by HDMI source, no external power required.
HDMI switch with high bandwidth up to 5.1 Gbps data transmission, can support 3D, 1080P resolution and HD audio.
Suitable for most devices with standard HDMI interface. Support input: computer, Nintendo Switch, Wii, Xbox 360, Xbox One, PS2, PS3, PS4, Blu-Ray DVD player etc. Output: HD-Read or Full HD TVs, monitors, projectors.
How to install:

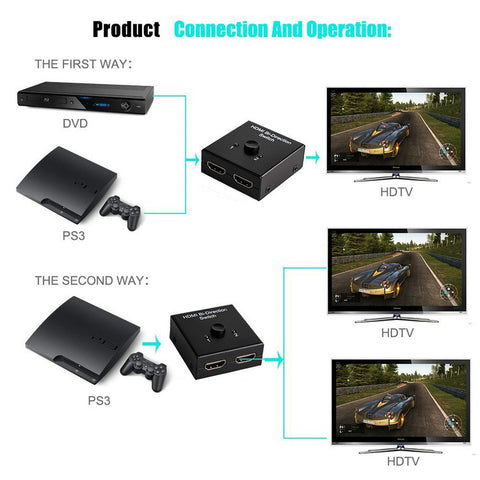

- Connect two HDMI sources to one HDMI display or one HDMI source to two displays.
- Power up the HDMI source.
- Easily switch by pressing the button.
- Power Supply: DC 5V/1A (Adapter: AC 100V-220V 50/ 60 Hz)
- HDMI: HDMI 1.3
- HDCP: HDCP 1.2
- Data Transmission Speed: 5.1 Gbps
- Video Signal Input: 5.0Vp-p
- Max Single-Link Range: 1920x1200 1080p, 3D 1080p/ 24 Hz
- HDMI Resolution: 480i/ 576i/ 480P/ 576P/ 720P/ 1080i/ 1080P
- Band Width: Up to 225MHz
- Size: 5 x 5 x 2 cm
- Package Weight: 0.1 kg
- Package Size: 8 x 8 x 5 cm
- 1 x HDMI Bi-Direction Switch
